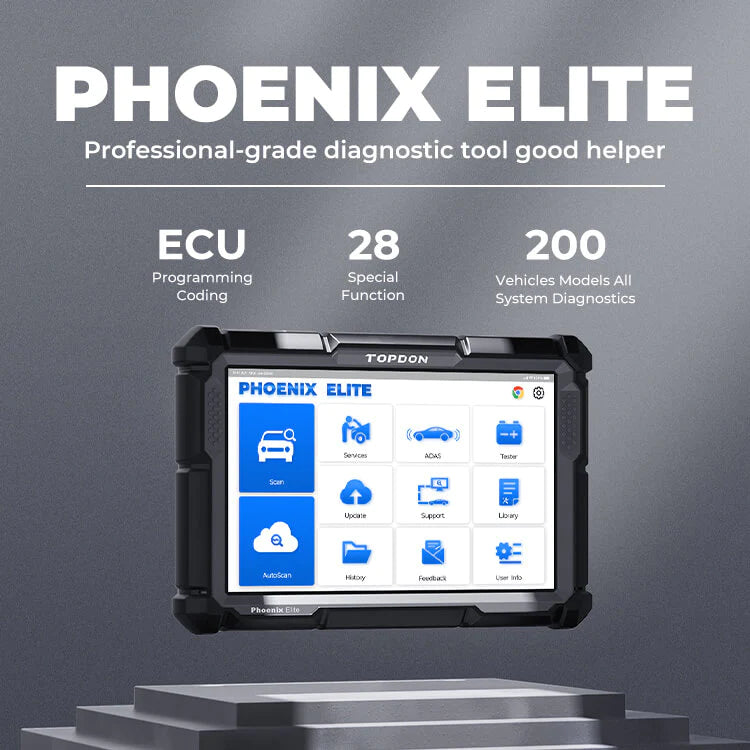

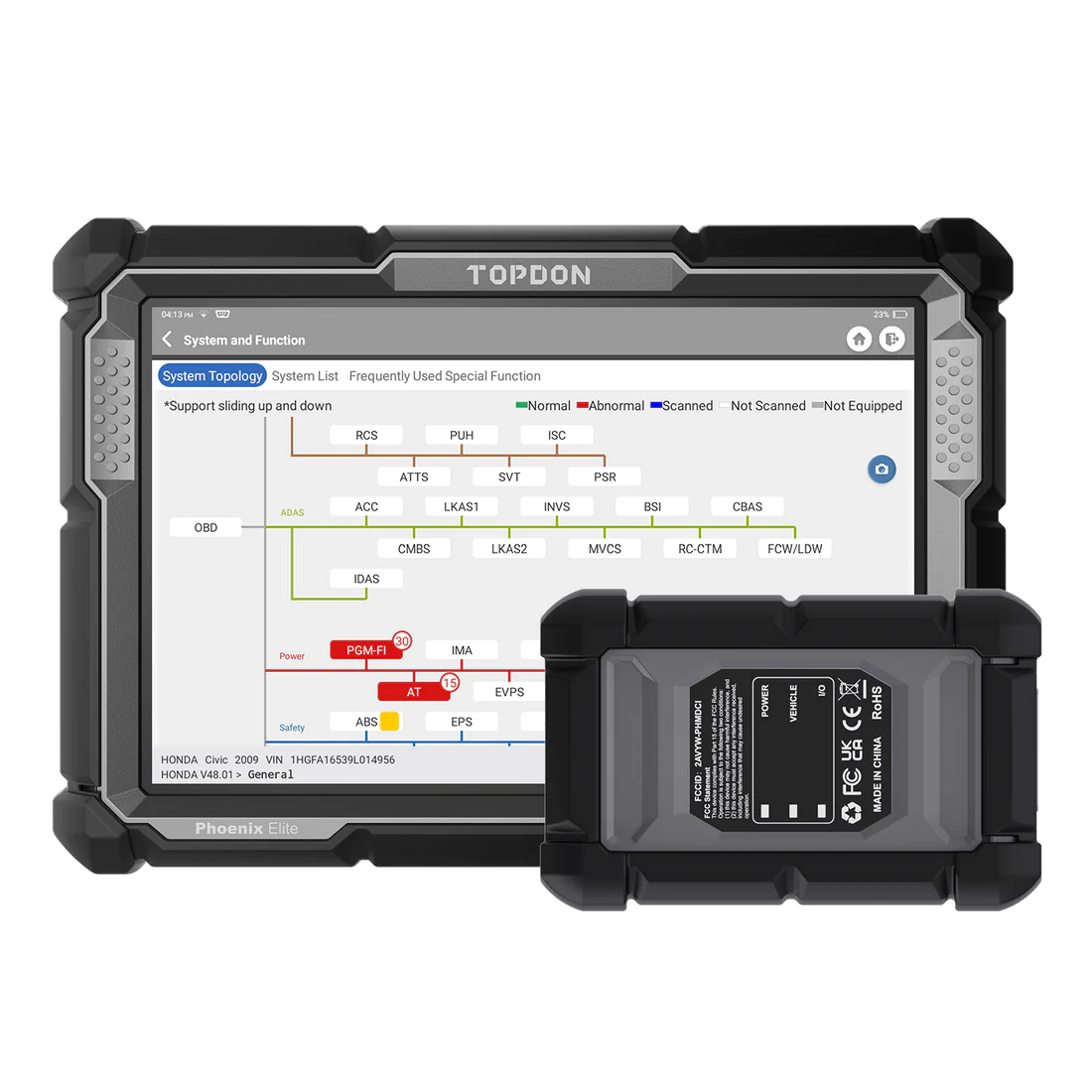

PHOENIX ELITE (2YR SUBS)

The Phoenix Elite is a professional-grade diagnostic scanner that offers OE-level capabilities. With a 10.1 inch LCD screen, 4-Core 2.0 GHz Processor, and Android 10 operating system, this tool provides fast and precise diagnosing capabilities. Its topology feature lets technicians have a clear picture of the automobile's sensor systems and quickly find communication issues or identify trouble codes. The Elite offers cloud-based programming and online coding 9 makes (VW, SEAT, SKODA, AUDI, MERC, BMW, Hyundai, Kia & Nissan )

This tool can perform active tests, coding, initializations, memory resets, and much more.

Features

CONNECT TO THE NEWEST VEHICLES

• Vehicle communication is enhanced with most of the latest communication protocols. The Phoenix Elite comes equipped with wireless VCI and CAN-FD capabilities.

ALL DATA ON ONE SCREEN

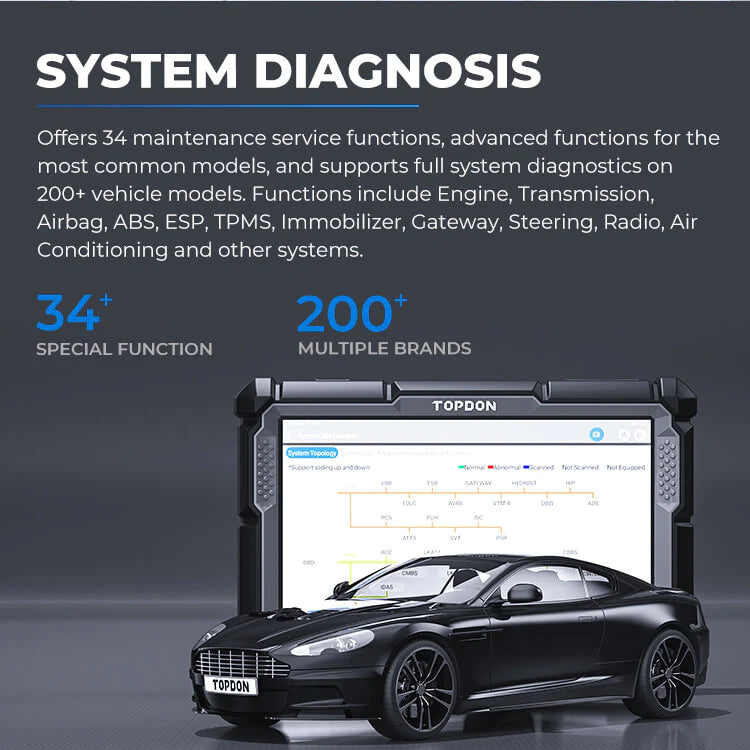

• Topology mapping displays related vehicle systems and CAN network.
• Diagnose communication issues instantly.
• Color-coded mapping of each module’s communication status.
• Offer active tests, special functions, coding, initialization, and memory resets.

GUIDED FUNCTIONS FOR VAG VEHICLES

• Step-by-step guided diagnostics procedures based on code for VW and Audi Vehicles.

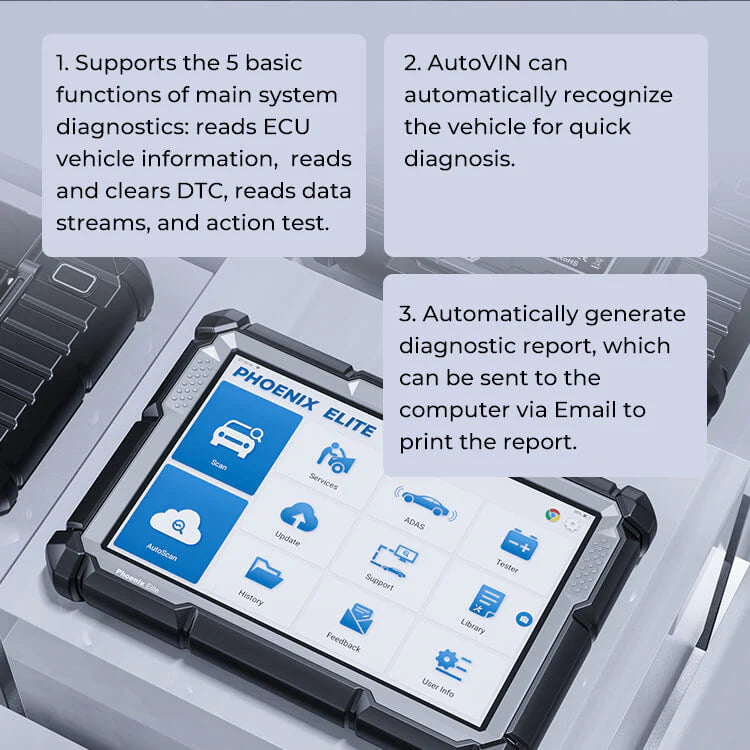

VEHICLE AUTO VIN AND AUTODETECT

• The Phoenix Elite automatically captures the vehicle’s VIN number and finds all relevant information about the vehicle. Use this feature to save time and prevent mistakes.

PRE-SCAN AND POST-SCAN REPORTING

• The Pre-Scan and Post-Scan features allow the technician the ability to record the codes prior to repair. This will enable copies to be given to insurance companies and customers for repair approval.
• When the repairs are completed, the Post-Scan report can be recorded showing all codes are clear, showing off the vehicle's clean bill of health.

EXPAND YOUR CAPABILITIES WITH ADAS CALIBRATION

• Stepping beyond diagnostics, the Phoenix Elite introduces ADAS capabilities to auto shops. Download the ADAS upgrades and pair with a Phoenix ADAS system to turn your Phoenix Elite into a calibration station, creating a new revenue stream for auto shops.

Specifications

Phoenix Elite:

• Display: LCD 10.1” touchscreen, 1280*800

• CPU: 4-Core Processor, 2.0 GHz, Android 10.0

• RAM: 4G

• ROM 64G

• Battery: 12000 mAh / 3.8V

• Operating Voltage: 9~18V

• Storage Temperature: -20℃~60℃（-4℉~140℉）

• Working Temperature: 0℃~50℃（32℉~122℉）

• Dimension: 278*191*48 mm（10.94*7.52*1.89"）

• Package size: 468*320*143 mm(18.43*12.60*5.63")

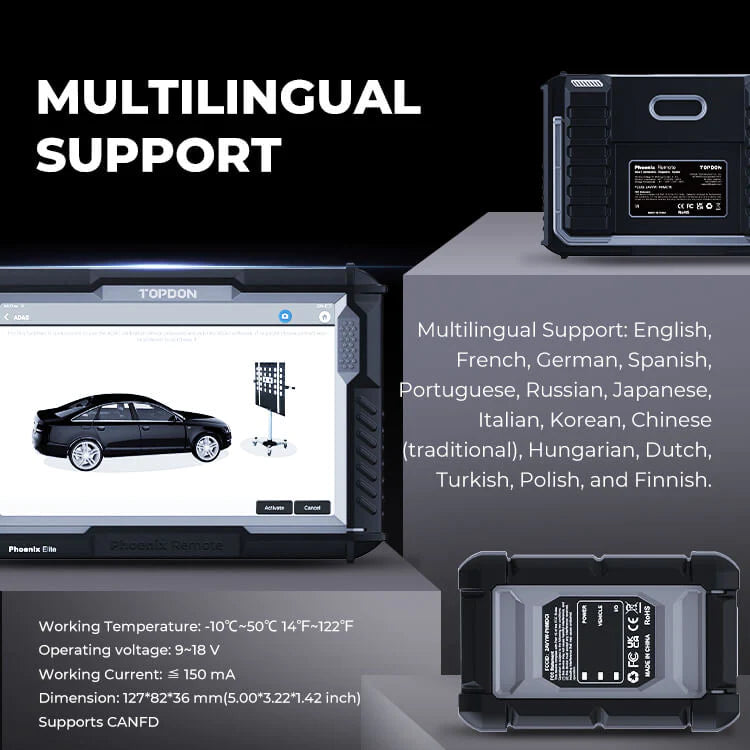

• Multilingual Support: 24 Languages
  English, German, Spanish, French, Italian, Japanese, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Chinese (Traditional), Korean, Finnish, Greek, Slovak, Romanian, Arabic, Croatian, Slovenian, Czech, Danish, Norwegian

Phoenix VCI:

• Working Temperature: -10℃ to 50℃（14℉ to 122℉）

• Operating Voltage: 9 to 18 V

• Working Current: ≦ 150 mA

• Dimension: 127 x 82 x 36mm（5 x 3.22 x 1.42”）

• New protocol supported: CANFD

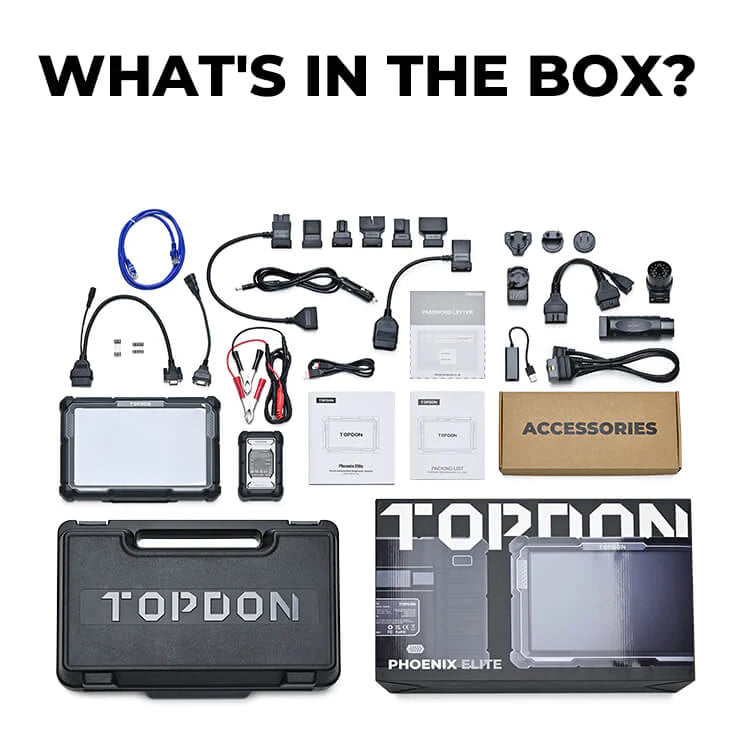

Packing List

• 1* Phoenix Elite

• 1* Phoenix MDCI (VCI Dongle)

• 1* OBDI Adapter BOX Transfer Line

• 1* OBDII Extension Cable

• 1* Cigarette Lighter Cable

• 1* Type-C to USB Cable

• 1* Battery Clamps/Cable Set

• 1* Power Adaptor

• 1* User Manual

• 1* Password Envelope

• 10* Non-16pin Adaptor Cable Kit

• 4* Fuse (φ5*20mm)

• 2* Fuse (φ6*30mm)

• 1* BMW F-Chassis Programming Cable
