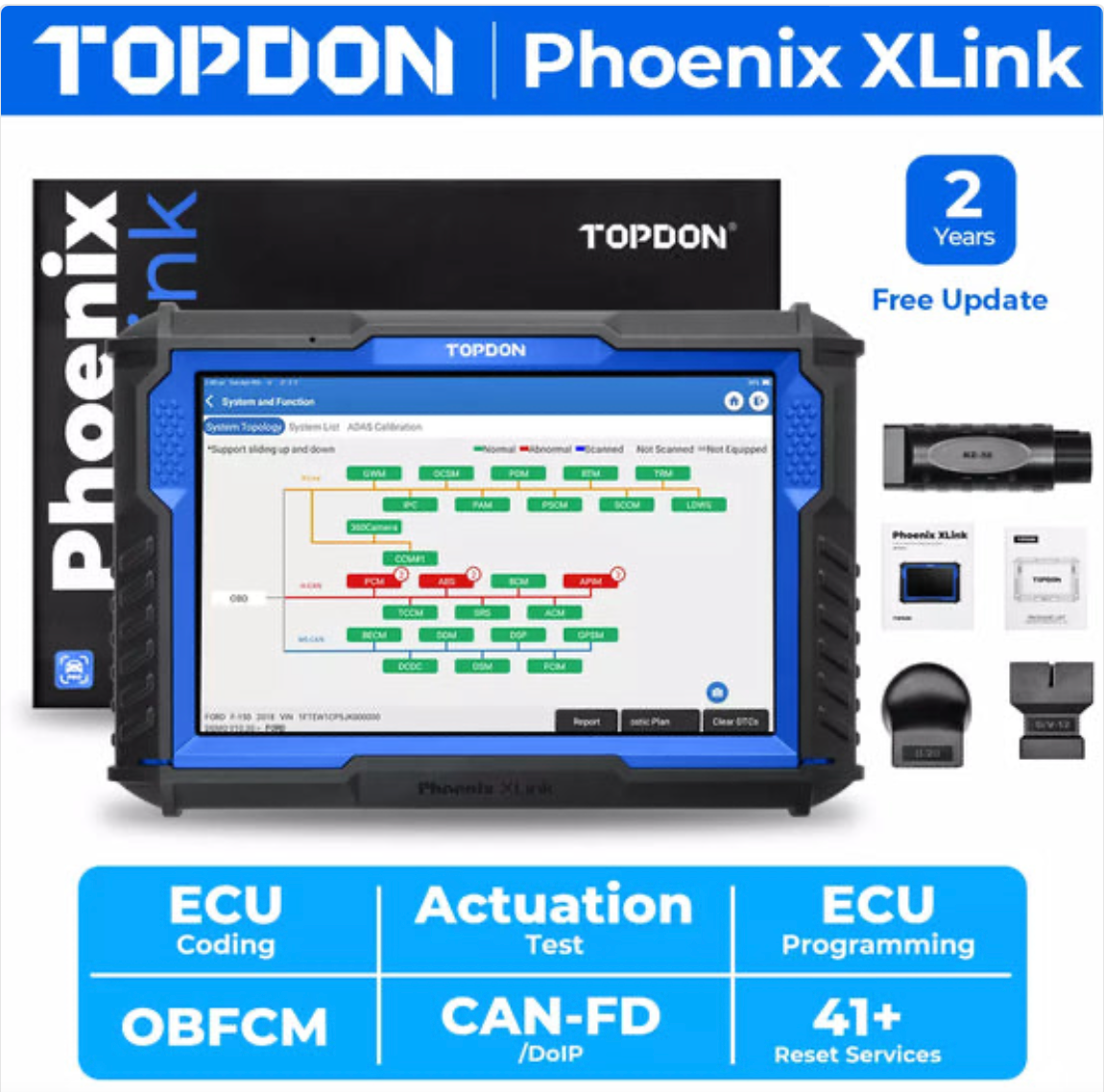

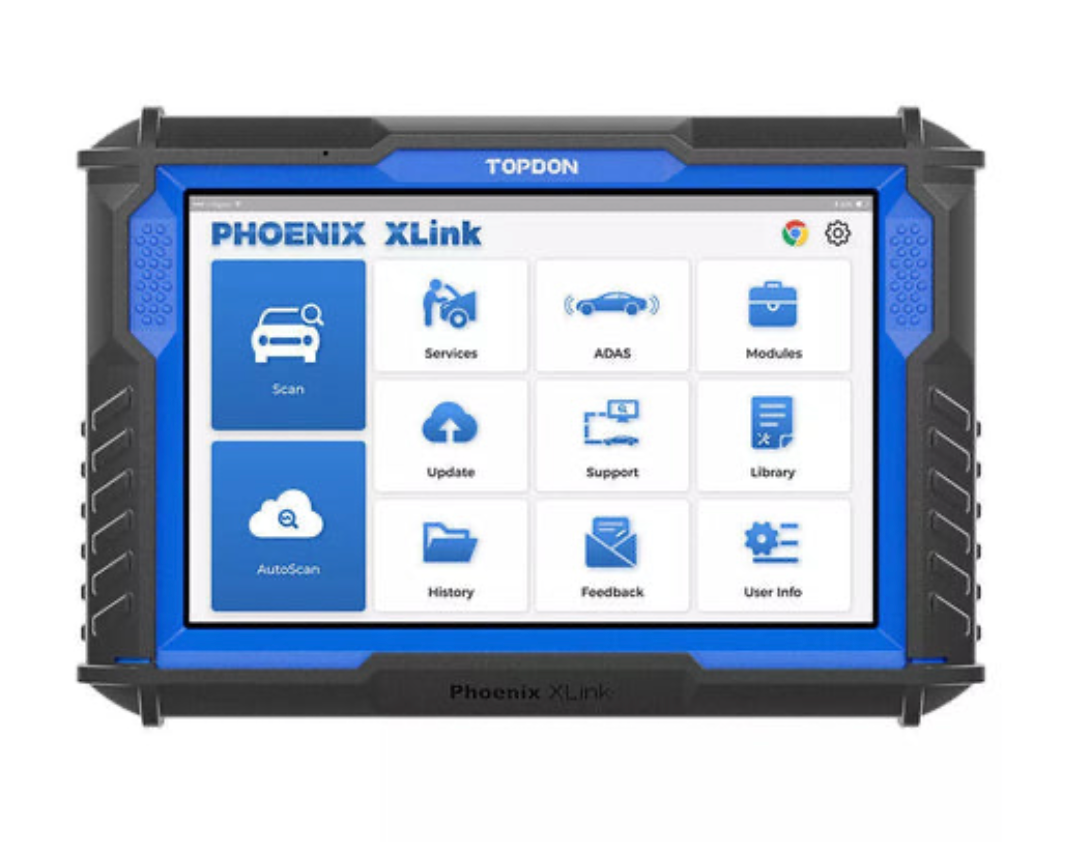

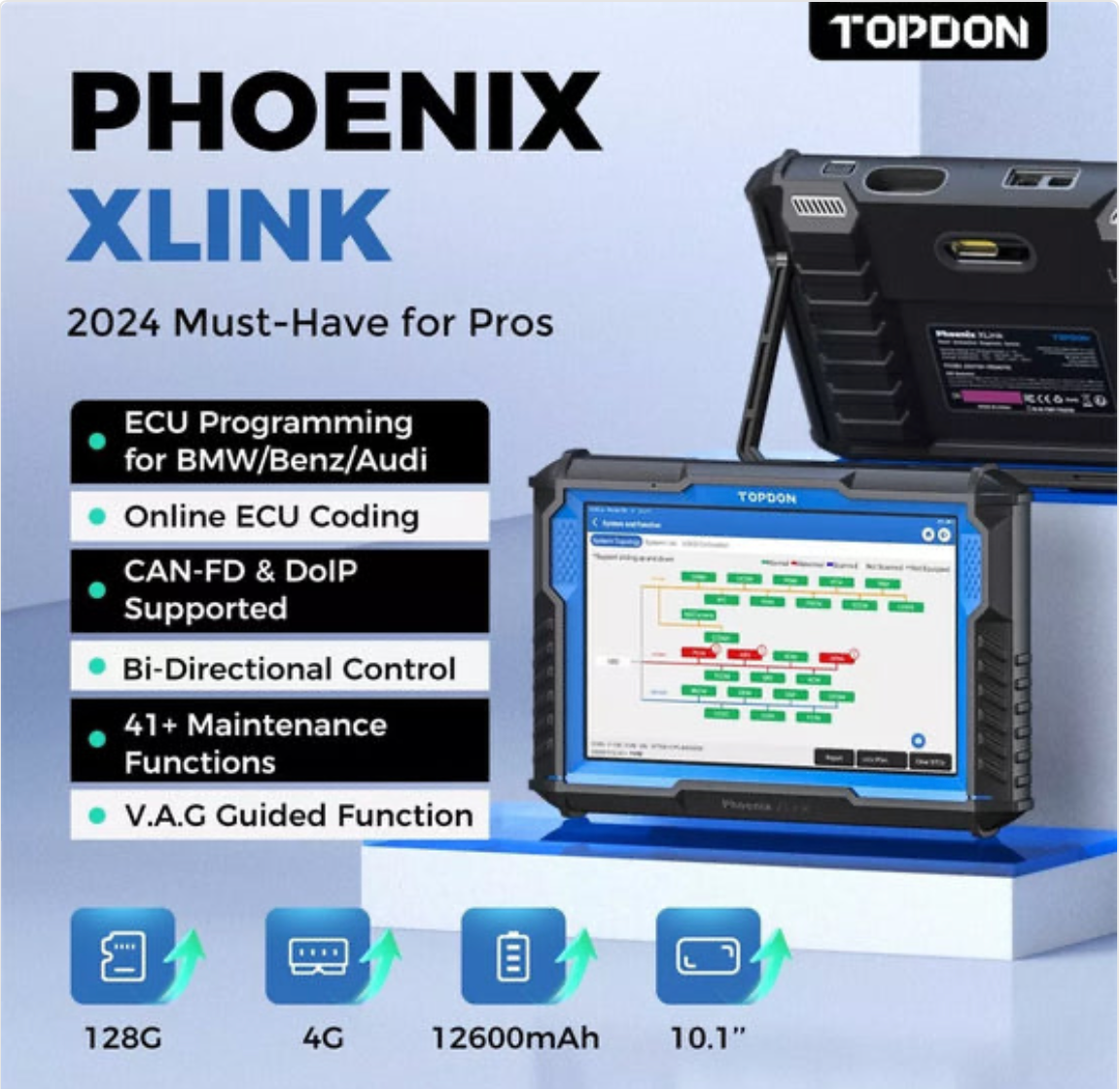

TOPDON Phoenix XLINK

Guided Function: The Topdon scanner would give you a hint and helpful suggestion to guide you step by step all the way to the destination. (For Volkswagen, Audi, Skoda, Seat, etc.)

Flash Hidden Function: The Topdon Phoenix XLink could find the secret menu and activate the secret functions for you to customize the vehicle with a simple click. Such as foldable side mirrors, auto central lock, daytime running lamps, etc. (For BMW, Benz, JEEP, Fiat, Porsche, Toyota, Nissan, Peugeot, Citroen, etc.

Topdon Phoenix XLink scan tool allocates 41 service functions to meet various diagnostic needs and provide more help to vehicles.

1. Oil Reset (53 brands): Reset the oil life system and turn off the oil light after replacing the oil or oil filter to start a new cycle.
   2. SAS Reset (44 brands ): Calibrate the steering angle after replacing the steering angle position sensor and the mechanical parts of the steering system, etc. Stores the current steering wheel position as the straight-ahead position in the steering angle sensor and clear fault memory.
   3. EPB Reset (41 brands ): Maintain the electronic braking system safely and effectively by deactivating and activating the brake control system, setting brakes after disc or pad replacement, etc.
   4. BMS Reset (31 brands ): Re-match the control module and motoring sensor for battery detecting more accurately, clear original low battery information, and prevent the related control module from detecting false information.
   5. DPF Regeneration (39 brands): Perform the regeneration procedure as know as the DPF cleaning operation to clear particulate matter from the DPF filter through continuous combustion oxidation mode to stabilize the filter performance.
   6. ABS Bleeding (34 brands ): Bleed the air of a brake system to restore ABS brake sensitivity.
   7. IMMOBILIZER: If the keys are lost or the anti-theft module is replaced, this feature can help you to match the new key, delete a lost or failed key, and match a replacement anti-theft module.
   8. Sunroof Reset: This function is used to initialize the sunroof control module data, set the sunroof lock switch, close the sunroof in case of rain, check memory function for sliding/tilting sunroofs, gauge outside temperature threshold, etc.
   9. Suspension Reset (11 brands ): Adjust the vehicle height sensor for level calibration when replacing the vehicle height sensor or control module in the air suspension system.
   10. Gearbox Reset: This function is used for gearbox matching. When a gearbox has been dismantled or repaired (or after the battery is disconnected on some models), this can lead to delayed shifts or other problems. When this function is performed, the gearbox automatically adjusts to driving conditions, for a more comfortable and optimal shift quality.
   11. AFS Headlamp Reset
   12. Injector Coding: Code the injector after replacing or adjusting to correct the fuel injection volume of each cylinder more accurately.
   13. Gear Learning: This function is used for the crankshaft position sensor to learn any crankshaft teeth machining errors and store it in the computer for engine misfire diagnosis. For vehicles fitted with Delphi engines that have not learned the crankshaft teeth, the fault code light will turn on when the engine is started. The fault code “P1336- crankshaft teeth not learned” will appear, and the fault light will turn off when the function is successfully completed.
   14. TPMS Reset: Quickly look up the tire sensor IDs from the vehicle’s Electronic Control Unit , and perform TPMS replacement and sensor test.
   15. Throttle Adaptation (37 brands ): Cycle the motorized throttle body through various states (idle, part throttle, WOT) to relearn their positions.
   16. A/F Reset (5 brands ): This function can set or learn Air/Fuel ratio parameters.  The A/F reset function is used to set vehicle air-fuel ratio parameters and control the air-fuel ratio of the mixture around the theoretical value.  Air-fuel ratio: The ratio of air mass to fuel mass in the combustible mixture. The theoretical air-fuel ratio is 14.7:1.
   17. ADBLUE Reset (8 brands ): After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea reset operation is required.  The ADBlue reset function is used to clear the urea fault indicator by performing a urea reset operation after filling urea.
   18. Coolant Bleed (5 brands ): This function can activate the electronic water pump before venting the cooling system.  After an engine cooling system failure or antifreeze change, you need to activate the electronic water pump for exhaust. Electronic water pump systems are common in BMW models.
   19. EGR Reset (7 brands ): This function can learn the EGR (Exhaust Gas Recirculation) valve after it is cleaned or replaced.  Performing the EGR reset function after cleaning or replacing the EGR valve clears the trouble code and turns off the fault indicator.
2. 20. Language Change (7 brands ): This function can change the system language of the vehicle central control panel.
   21. NOx Sensor Reset (8 brands ): A Nitrogen Oxygen (NOx) Sensor is a sensor used to detect the NOx content in the engine exhaust gas. This function can reset the catalytic converter learned value stored in the engine E/CU. It needs to be performed when the NOx fault is re-initialized and the NOx catalytic converter is replaced.
   22. Odometer Calibration (9 brands ): This function can copy and write the value of kilometers in the chip of the odometer so that the odometer shows the actual mileage.  It needs to be performed when the mileage is incorrect due to a damaged vehicle speed sensor or odometer failure.
   23. Seats Calibration (18 brands ): This function can match the seats that are replaced and repaired with memory function.
   24. STOP/START (5 brands ): This function can open or close the automatic start-stop function by setting the hidden function in E/CU (provided that the vehicle has a corresponding hidden function supported by hardware). Generally, the physical switch on the vehicle that turns the automatic start-stop on or off also serves the purpose of turning the automatic start-stop off and on. However, for most vehicles, after using the physical button to turn off the start-stop feature, and then turning off the ignition and restarting the vehicle, the vehicle automatically returns to its default state. This function permanently turns off automatic start-stop and requires diagnostic software to change the state.
   25. Reset AIRBAG: This function resets the airbag data to clear the airbag collision fault indicator, so that the airbag computer in the vehicle can run normally.  It needs to be performed when the airbag deploys, the corresponding fault code of the collision data appears, the airbag indicator lights up, and the fault code cannot be cleared.
   26. Transport mode (13 brands ):This function can deactivate the transport mode so that the vehicle can function normally.  It needs to be performed when the following functions are disabled in order to reduce the power consumption: limiting the vehicle speed, not waking up the door opening network, disabling the remote control key and so on.
   27. TYPE Reset (5 brands ) : This function can set the size parameters of the modified or replaced tire.  After tire modification or replacement, the vehicle wheel and tire sizes change, and the corresponding speed and mileage calculations also change, which requires diagnostic device to adjust the corresponding parameters of the vehicle tire information.
   28. Windows Calibration (15 brands ): This feature can perform door window matching to recover E/CU initial memory and recover the automatic ascending and descending function of power window.
   29. Clutch matching: This function can change the clutch pedal position or switch learning. After E/CU replacement, gearbox replacement/removal, or clutch replacement, this function learns the contacts and positions where the clutch starts to transmit engine torque. Suitable for adaptive clutches. Confirm the behavior of the clutch corresponding to the position where the accelerator is lightly depressed when the vehicle is started. If smooth, the contact point is correct. If the engine revs too high when the clutch starts to deliver engine torque, or if there is a hard jerk, the contact point is incorrect. This condition requires operation of the clutch matching function.
   30. FRM Matching
   31. Codage E/CU: After performing the encoding function of some systems, the control unit needs to be reset.
   32. Turbocharging matching
   33. IMMO PROG:  E/CU cloning with the optional T-Ninja Box.
   34. Rainfall light Sensor
   35. GPF Regeneration: After long-term use of the particle catcher, fuel consumption will increase, engine output power will decrease. At this time, the GPF needs to be replaced or regenerated.
   36. Gateway Module data calibration
   37. Power Balance: During the power stroke of each cylinder, the power balance monitors crankshaft, acceleration to determine the relative power provided by each cylinder.
   38. High Voltage Battery: For diagnosis and state information detection (such as battery voltage and temperature) on high-voltage accumulator.
   39. A/C System Relearn: If the E/CU or actuator of the vehicle air conditioner is replaced, or the memory of the E/CU memory is lost, air conditioner initialization learning is needed.
   40. Motor Angle Calibration: For replacement of intelligent cruise control system of vehicle and matching after repairing.
   41. Intelligent Cruise Control System: For replacement of intelligent cruise control system of vehicle and matching after repairing.




   Active Test

   The Active Test function is used to conduct mutual communication with the vehicle sub-systems and components. You don’t need to disassemble the car into parts for detecting the problem, minimizing your trouble, and saving your time. Active Test can be employed on headlamps, windscreen wipers, windows & doors, sunroof, etc.

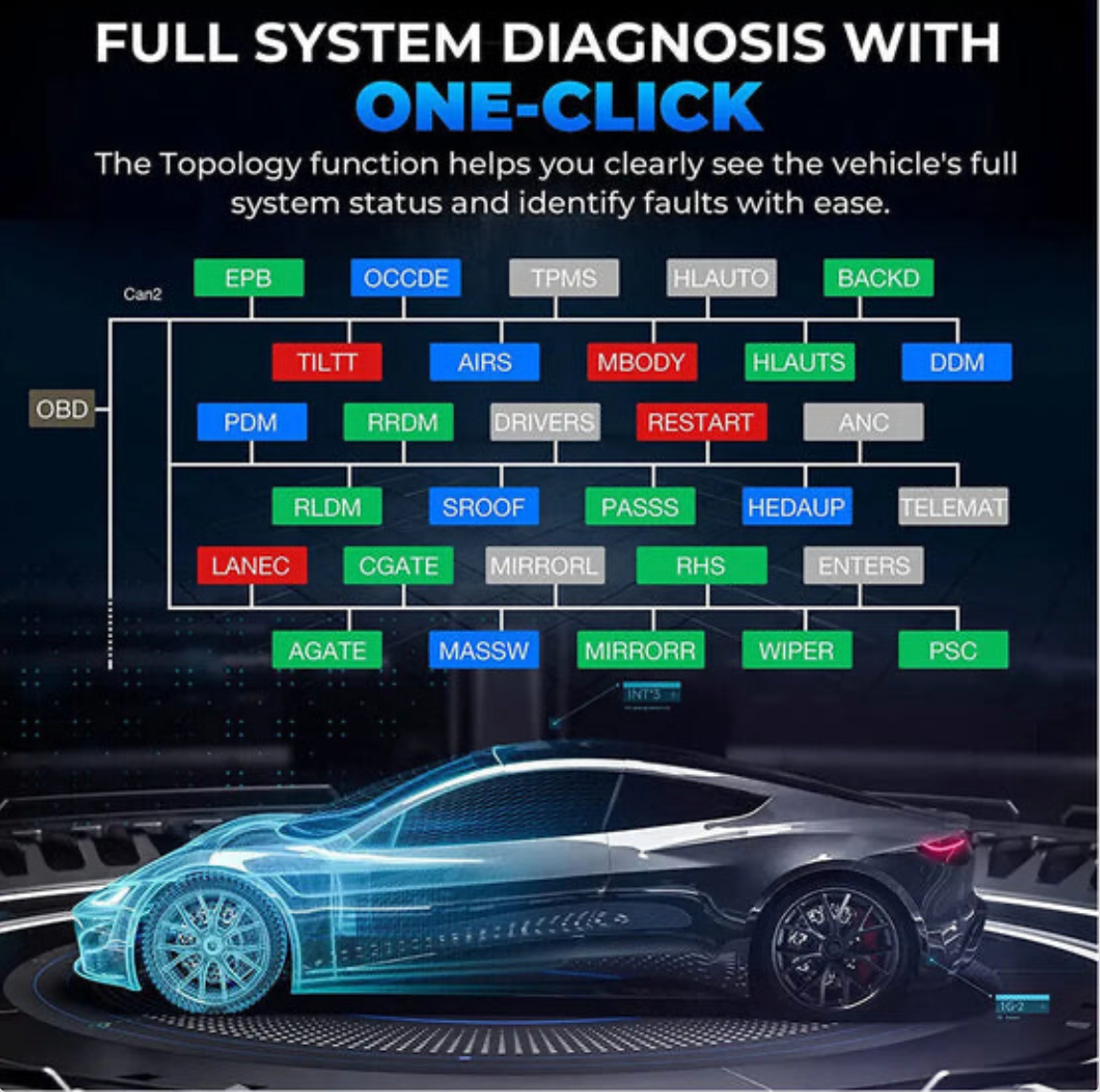

Full System Diagnosis

Topdon Phoenix XLink diagnostic tool can access all available systems, such as Engine, AT, ABS, SRS, IMMO, air conditioning system, steering angle system, air suspension system, etc

2-Years Free Update

You will enjoy quick and effortless software update procedures, for new upcoming features, and car models within its fold, for 2 years with no extra charges.

That’s great for peace of mind, especially given the high asking prize.

Also, another great news is that the upgrade process is quite straightforward. “One-Click Update” is available with just a single touch upon the update icon.

Specifications:
